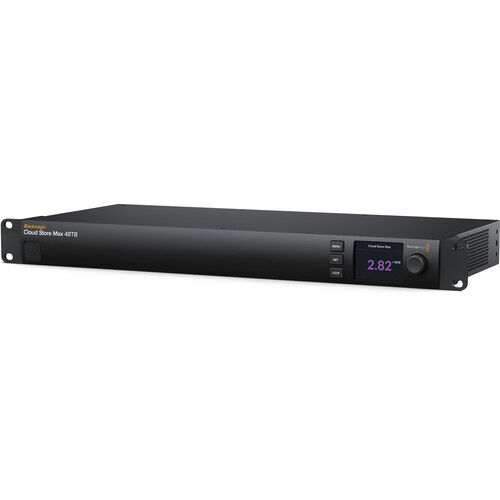

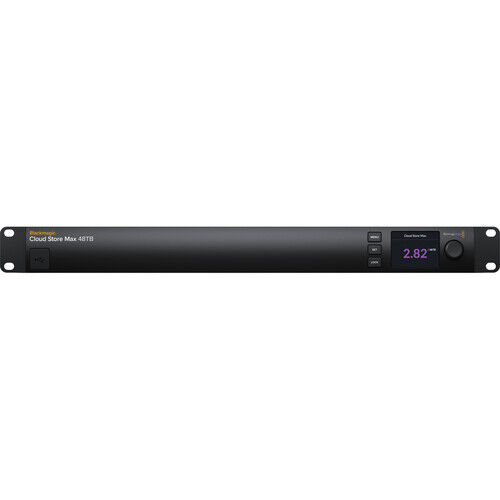

Blackmagic Design 48TB Cloud Store Max

$20,929.00
Sold Out





Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Items Included

  • Blackmagic Design 48TB Cloud Store Max
  • Limited 1-Year Manufacturer Warranty

Key Features

  • 48TB NVMe M.2 Storage
  • Rackmount Design with Silent Cooling
  • 12 Internal Flash Memory Cards
  • 10GbE and 100GbE RJ45 Network Ports
  • HDMI and SDI Monitoring Output
  • USB-C-to-Ethernet Port
  • Sync to Blackmagic Cloud/Dropbox/Drive

Portable and Quiet Design

A rackmount design ensures the Max unit remains portable and quiet. The Max model is a full rack width with 12 flash memory cards, and 100GbE and 10GbE Ethernet connections. If you need to access files quickly, use the USB-C port as an alternate network connection via your personal computer. HDMI and SDI monitoring outputs provide a live graphic view of the storage status.

Connectivity

  • An IEC power socket is included for connecting AC power. An additional 4-pin XLR 12V DC power input is provided for redundancy.
  • The USB-C port supports Ethernet for direct connection to a computer for quick file access.
  • The 100GbE Ethernet port connects the unit to high-speed Ethernet switches. Its flexible QSFP socket allows you to use copper cables or longer optical fiber cables.
  • Four 10GbE RJ45 Ethernet ports connect high-speed computers to the Max unit. You can then create four separate edit workstations.
  • Use the SDI and HDMI output connectors to connect the Max to compatible displays and monitor the status of your Cloud Store in real time or integrate it into broadcast trucks. The HDMI port allows you to see a storage map, speed graphs, sync, active users, and power status.

Flash Memory for Multiple Users

Large parallel flash memory cores with lots of storage space allow you to have multiple users working off of your Cloud Store Max unit. The Max unit features 12 M.2 cards arranged in a RAID 0 group for high-capacity performance. This can accommodate dozens of individual users and has enough speed for HyperDeck recorders and editing workstations simultaneously.

Sync to Blackmagic Cloud

Install a local cache of media to upload to the Blackmagic Cloud, Dropbox, or Google Drive to distribute files globally. Blackmagic Cloud Store will stay in sync to save space on editing workstations and provide access within your production network.

Blackmagic Design Cloud Store Max Specs

Drives

Storage Capacity

48 TB

Included Drives

2x 24 TB SSD

General

Number of Bays

4x M.2 (Length Unspecified)

Inputs/Outputs

4x RJ45 10GbE
1x QSFP
1x USB-C 3.0 / 3.1/3.2 Gen 1
1x BNC Output
1x HDMI Output

Media Card Slots

No

PCI Expansion

No

Software

OS Compatibility

macOS 14.3 or Later
Windows 10 to 11

Electrical

Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 140°F / -20 to 60°C

Certifications

No

Cooling

No

Dimensions

19 x 9.25 x 1.74" / 48.3 x 23.5 x 4.42 cm

Weight

6.3 lb / 2.9 kg

(DWCLDFCLDMAX48)

SKU DWCLDFCLDMAX48
Barcode # 9338716008883
Brand Blackmagic Design
Shipping Weight 3.0000kg
Shipping Width 0.450m
Shipping Height 0.550m
Shipping Length 0.150m
