Atomos Shinobi 7" 4K HDMI/SDI Monitor

$895.00
RRP $1,015.00
SAVE $120.00 (12%)


or 4 payments of $223.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

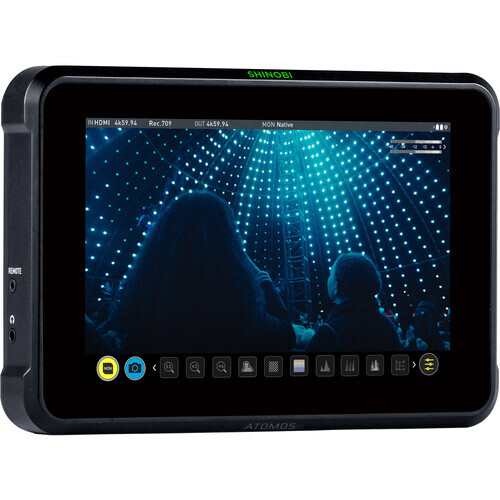

Add a bright, high-resolution monitor to view your 4K/2K footage from a cinema camera such as a Z CAM E2, Panasonic BGH1, or RED KOMODO with the Shinobi 7" 4K HDMI/SDI Monitor from Atomos. This 7" on-camera monitor features a 1920 x 1080 10-bit FRC IPS display with a brightness of 2200 cd/m², which makes it suitable for use in both exterior and interior conditions. This larger model improves on the original Shinobi as it adds 3G-SDI input and loop output up to 2K60, HDMI 2.0 input and loop output up to 4K60, signal cross conversion, a camera control port, dual L-series battery slots, and future possibilities with its built-in USB and RJ45 ports.

The touchscreen Shinobi 7 runs the latest AtomOS firmware that features a variety of onscreen analysis tools such as multi-scope views, exposure, framing, focus assist, waveform, RGB parade, and histogram tools. It also features an SDI card input to load custom 3D LUTs, and it supports SDR and HDR viewing. The AtomHDR display technology allows you to accurately monitor your log gamma footage without having to view flat, washed-out images or use a LUT to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras.

It also supports camera control using its 2.5mm control port and optional cables, and it currently supports control of the Z CAM E2 series of cinema cameras. Built to withstand the rigors of production, the Shinobi 7 features a lightweight chassis and powers from a dual L-series battery plate or using the included power adapter.

AtomHDR

With AtomHDR you can monitor up to ten stops of dynamic range of your camera's LOG image. Most conventional monitors can only display six or seven stops, which is fine for standard footage; but a Log image will look overly flat. It is also superior to monitoring with a loaded LUT, which can clip the highlights and mask shadows.

Supported Log Formats

  • ARRI Log CEI160 / CEI200 / CEI250 / CEI320 / CEI400 / CEI500 / CEI640 / CEI800 / CEI1000 / CEI1280 / CEI1600
  • Canon CLog / CLog 2 / CLog 3
  • Fuji F-Log
  • JVC JLog
  • Nikon N-Log
  • Sony SLog / SLog2 / SLog3
  • Panasonic Vlog
  • RED Log3G10 / RED LogFilm
  • PQ10k
  • HLG

HDR Monitoring

  • Sony SGamut / SGamut3 / SGamut3.cine
  • Canon Cinema / DCI P3 / DCI P3+
  • Panasonic V Gamut
  • ARRI ALEXA Wide Gamut
  • Rec. 709 / BT.2020
  • JVC
  • RED WideGamut / RED DragonColor / DragonColor2
  • RED Color2 / RED Color3 / RED Color4

DCI/UHD 4K and 2K Input/Output

Monitor 4K footage in DCI or UHD formats via HDMI 2.0 up to 60 fps and up to 2K60 via 3G-SDI.

Output signal via HDMI and 3G-SDI loop outputs.

The Shinobi 7 features HDMI/SDI cross conversion support.

Audio Monitoring

Input/output audio via HDMI and output audio using the 3.5mm headphone port for convenient audio monitoring.

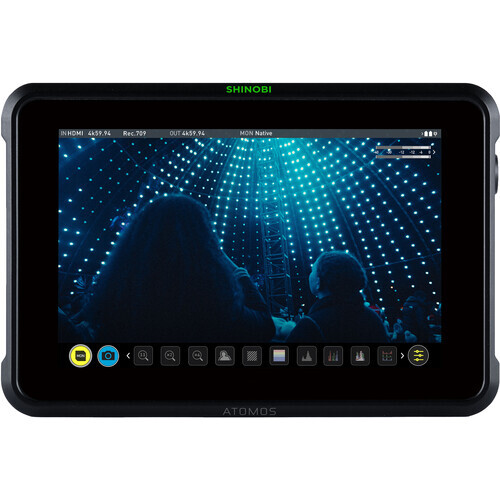

7" Daylight Viewable Screen

The Shinobi 7 features a 7" IPS LCD 1920 x 1080 screen that is illuminated by a bright 2200 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.

HDR Signal Management

Log and HDR signals can be difficult to monitor with conventional equipment. With the Shinobi's built-in HDR signal management functions, the log signal can be converted to the PQ standard for compatibility with existing consumer and professional HDR equipment.

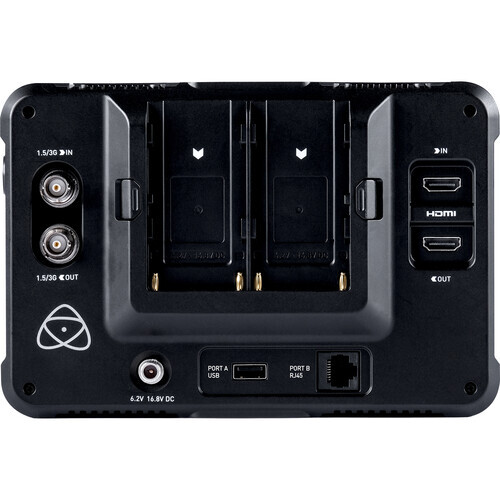

Power Options

The back of the monitor features dual L-series battery slots for longer shoot durations, and a universal power adapter is also included.

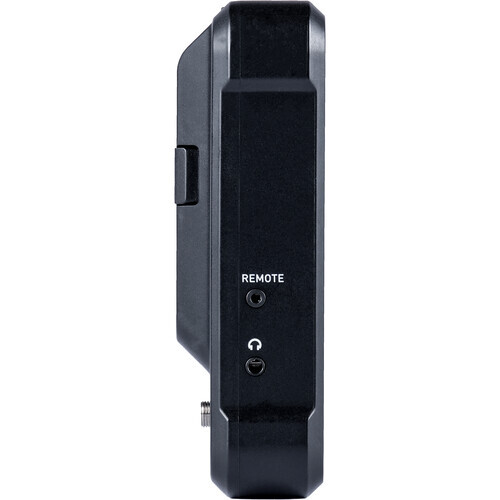

Camera Control

The monitor features a 2.5mm control port that currently supports control of Z CAM E2 series cinema cameras, while future camera control support is pending.

Anamorphic De-Squeeze

The Shinobi 7 supports anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.5x, 1.33, and Panasonic's 8:3.

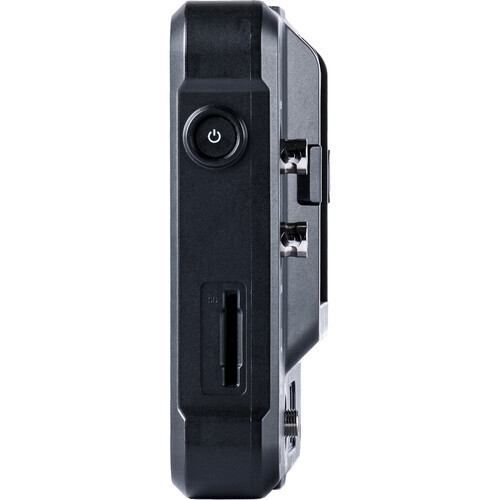

3D LUT Management

An SD card slot allows you to load custom 3D LUTs and apply them to both input and output signals.

Specifications:

Display

Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 2200 cd/m2
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
HDR Compatibility Advanced HDR
Pixels Per Inch (ppi) 325 ppi
Real-Time LUT Monitoring SDR, HDR
Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

I/O

Video 1 x HDMI Type A (HDMI 2.0) Input
1 x BNC (3G-SDI) Input
1 x HDMI Type A (HDMI 2.0) Loop Output
1 x BNC (3G-SDI) Loop Output
Embedded Audio HDMI: 2-Channel
SDI: 8-Channel
Audio 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power 1 x Coax (16.8 VDC) Input
Other I/O 1 x LANC (2.5 mm) Output
1 x USB 2.0 (USB Type-A) Input
1 x RJ45 Input/Output
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC
Wi-Fi None

Format Support

Video Format HDMI (8/10-Bit 4:2:2)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI (8/10-Bit 4:2:2)
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Gamma Curve ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, JVC J-Log, Panasonic V-Log, REDlogFilm, Rec2020, Rec709, Sony S-Log 2, Sony S-Log 3
Video Signal Conversion HDMI to SDI

SDI to HDMI

Power

DC Input Power 6.2 to 16.8 VDC
Battery Type 2 x L-Series
Power Consumption 4 W (Typical)
7 W (Maximum)

Mounting

Mounting 2 x 1/4"-20 Female

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C (Recommended)

General

Material of Construction Plastic
Dimensions 198 x 133 x 39 mm
Weight 577 g

(ATOMSHB002)

SKU ATOMSHB002
Barcode # 814164022576
Brand Atomos
Shipping Weight 1.0000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.300m
Shipping Cubic 0.013500000m3
