Accsoon CineView HE HDMI 365m Wireless Video Transmission System

$799.00


or 4 payments of $199.75 with Info



Need Extras?




Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 3, 637 Princes Highway, Blakehurst, NSW 2221.

Features

  • Wireless Video Transmitter/Receiver Set
  • Mix up to 4 Receivers, Tablets & Phones
  • 1080p60 HDMI Transmission up to 1200' / 365m
  • USB/UVC Output for Computer Streaming
  • iOS/Android App with Zebra & LUT Support
  • 2.4 & 5 GHz Dual Band Frequencies
  • 1.3" OLED Displays, >60ms Latency
  • DC/USB Power, L-Series Battery Support
  • Auto Channel Selection, Group Pairing
  • Fanless Design, Aluminum Construction

The CineView HE Multi-Spectrum Wireless Video Transmission System from Accsoon allows you to send a 1080p60 camera signal to the included receiver plus up to three mobile devices. This versatile wireless video transmission system provides a cost-effective way of allowing four people on set to monitor an HDMI camera signal. The transmitter can send signal to a total of four devices simultaneously over distances up to 1200'/365m with only a 60ms delay. You can transmit to any mix of up to four receivers and iOS/Android smartphones and tablets using dual-band wireless signals.

The included dedicated receiver is easy to set up and pair, and it features an HDMI output and a USB UVC output to output your signal to a computer for streaming using third-party apps. The free-to-download companion app provides image tools such as peaking, zebras, false color for exposure, and .cube 3D LUT overlay. The transmitter and receiver feature DC and USB Type-C power inputs, and they also support an optional L-series battery that can power the set for up to 12 hours.

Wireless Transmission

  • Dual-Band 2.4 and 5 GHz wireless transmission
  • Latency less than 0.06s
  • Long-distance transmission range of 1200'/365m
  • One transmitter can connect up to four devices such as receivers, smartphones, or tablets
  • Wireless remote monitoring via Accsoon Go App
  • Automatic channel selection for optimal transmission

Video Input/Output

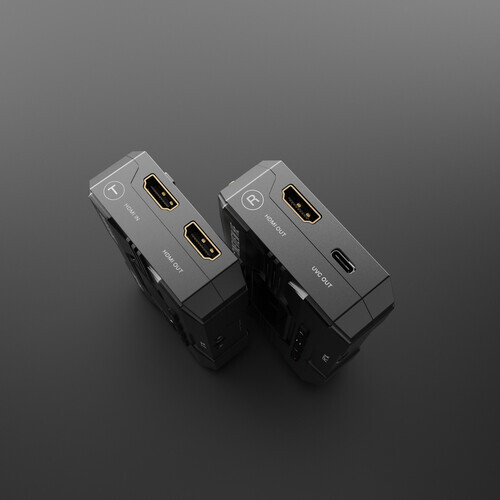

  • HDMI input and loop output on the transmitter
  • HDMI and USB Type-C/UVC output on receiver for streaming on a computer with third-party apps
  • Up to Full HD 1080p video and high-quality audio transmission

Design

  • Fanless design for silent operation

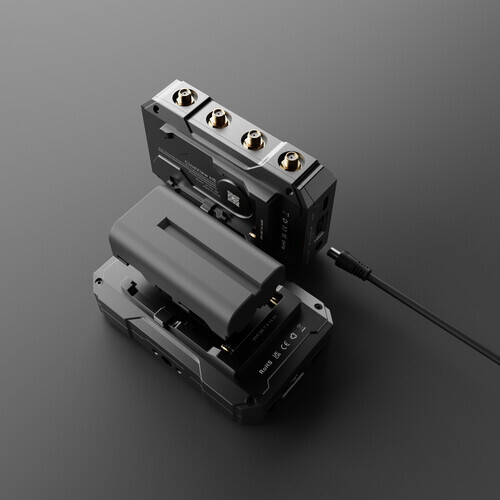

  • Power by L-series/NP-F type battery, DC input or USB Type-C
  • Group pairing knob
  • Bright 1.3" OLED screen
  • Compact, lightweight design with durable aluminum construction



Specifications:

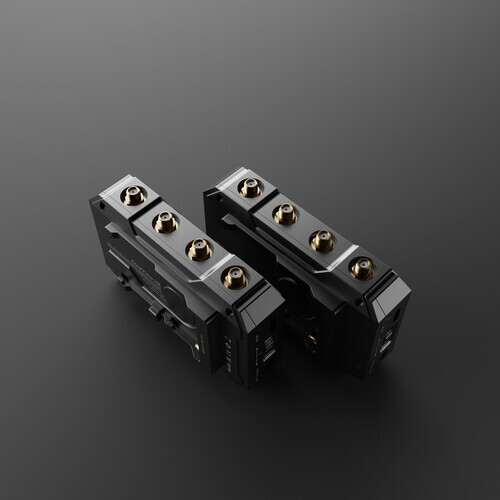

Antenna Ports Transmitter/Receiver: 4 x RP-SMA
Video Transmitter: 1 x HDMI Type A Input
Transmitter: 1 x HDMI Type A Loop Output
Receiver: 1 x HDMI Type A Output
Receiver: 1 x USB Type-C Output
Embedded Audio HDMI/USB Type-C
Audio None
Power Transmitter/Receiver: 1 x Barrel (16.8 VDC) Input
Transmitter/Receiver: 1 x USB Type-C (2 A / 5 VDC) Input

Wireless

Wireless Range 1200' / 365.8 m
# of Channels 20
Frequency Range 2412 to 2472 MHz
5180 to 5580 MHz
5660 to 5825 MHz
Latency < 60 ms
RF Power 17 dBm
Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)

Format Support

Video Format HDMI/Wireless
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 59.94/50
720p
576p
480p
Timecode Support No

Power

DC Input Power 7.4 to 16.8 VDC
Battery Type Transmitter/Receiver: 1 x L-Series

Mounting

Mounting 1 x Cold Shoe
1 x 1/4"-20 Female



What's in the box:

1 x CineView HE Transmitter

1 x CineView HE Receiver

2 x Shoe Mount

8 x Antennas



(WIT04-HE)

SKU WIT04-HE
Barcode # 664918771744
Brand Accsoon
Shipping Weight 1.0000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.005000000m3
