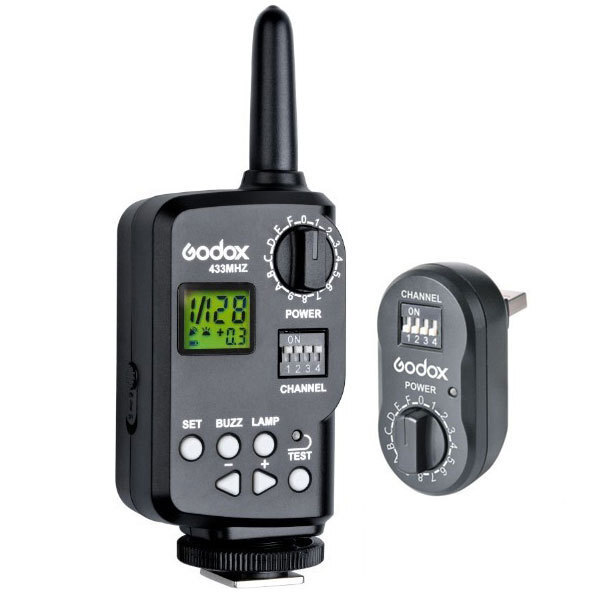

GODOX PT-16 WIRELESS POWER CONTROL FLASH TRIGGER (FOR GODOX GS GT QS QT WITSTRO) - 2.4 GHZ
PRODUCT DESCRIPTION
Description:
The wireless power control flash trigger PT-16 is designed for versatile use. When used on Godox flashes (with wireless control port), it is not only a flash trigger, but also incorporates multiple functions, such as, adjusting power ratio, controlling the on-or-off of the buzzer and the modeling lamp or the AF-assist beam. The trigger set consists of a transmitter (on camera) and a receiver (on-flash).
Features:
- Power, wireless control flash 16 packets
- Remote control lamp and focus lamp, and a buzzer switch
- Wireless synchronous flash
- Large area of liquid crystal display, clear and easy to understand
- Receiver mini light, flash power supply, without battery
- 50 meters above the maximum sync speed regulation range, 1/250 seconds
- Supports two types of power display mode (5.0~10.0 or 1/1~1/128)
- Easy to install and use the camera control in hot shoe on demand
Wireless adjusting flash settings:
The trigger set can wireless adjust the following settings: the flash power ratio, the on-or-off of the buzzer and the modeling lamp or the AF-assist beam, as well as the power-ratio display mode.
- On the transmitter and the receiver, set the channel select switch to the same position and the Power Control Group Select Dial to the same grade.
- Insert the receiver into the Wireless Control Port of the flash unit. Then power the flash on.
- Adjust the flash settings on your transmitter.
Wireless Triggering the Flash
- On the transmitter and the receiver, set the Channel Select Switch to the same position
- Insert the receiver into the Wireless Control Port of the flash unit. Then power the flash on.
- Press the Test Button to fire a flash. Alternatively, you can set the transmitter onto the camera's hot shoe and press the camera's shutter-release button to fire a flash.
Technical Specification:
| Transmitter Power Supply | 3V (2*AA Ni-MH or alkaline batteries) |
| Receiver Power Supply | 5V (Powered by flashes) |
| Transmit Frequency | 2.4gHz wireless remote system |
| Workable Distance | 50m/164ft (open areas) |
| Control on flashes | Flash power ratio |
| Modeling lamp or AF-assist beam on/off | |
| Buzzer on/off | |
| Power-ratio display mode | |
| Flash triggering | |
| Max. Sync Speed | 1/250 second |
| Channel | 16 |
| Net weight | A set: approx. 85g |
| Only receiver: approx. 20g | |
| Transmitter Dimension | 98*50*37mm |
| Receiver Dimension | 57*30*27mm |
Witkey series flash, flash upgrade, flash upgrade version of D upgrade, GT series, GS series of Gemini GeminiSupport camera
Canon, Nikon, Pentax, Olympus
PACKAGE INCLUDES:
1x PT-16 Transmitter 2.4 GHz
1x PTR-16 Receiver 2.4 GHzPlease note you need trigger and receiver to be same frequency to work.
(3648549821679)
| SKU | 3648549821679 |
| Barcode # | 3648549821679 |
| Brand | Godox |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.100m |
| Shipping Length | 0.100m |
